Part Number : 24C02N

Function : 2-wire serial EEPROM / AT24C01A/02/04/08A/16A Series

Maker : Atmel Corporation

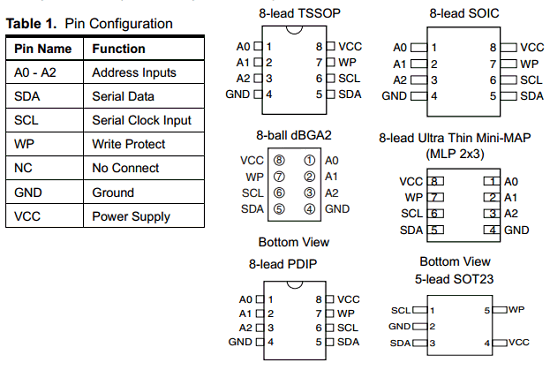

Pinouts :
24C02N datasheet

Description :

The AT24C01A/02/04/08A/16A provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C01A/02/04/08A/16A is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead SOT23 (AT24C01A/AT24C02/AT24C04), 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial interface. Inaddition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Pinout :


24C02N Datasheet PDF Download


24C02N pdf

Others datasheet of same file : 24C01, 24C01A, 24C02, 24C04
