Part Number : 2561
Function : PHOTOCOUPLER / PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
Maker : California Eastern Laboratories.

Pinouts :
2561 datasheet

Description :

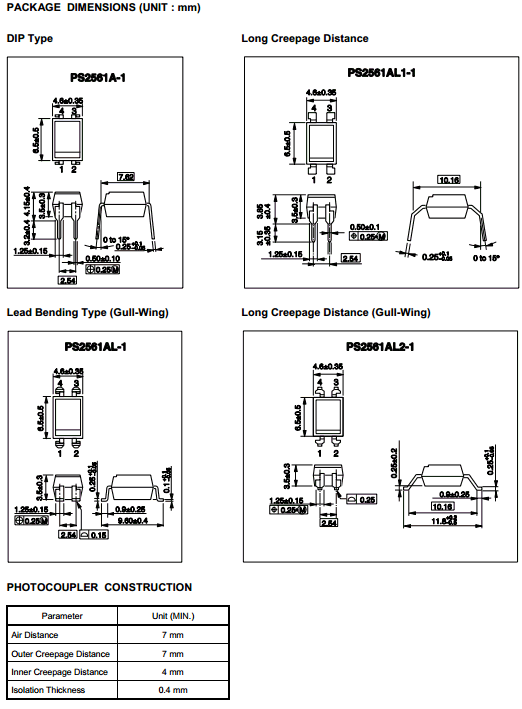

The PS2561A-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor to realize an excellent cost performance.

The PS2561A-1 is in a plastic DIP (Dual In-line Package) and the PS2561AL-1 is lead bending type (Gull-wing) for surface mount.

The PS2561AL1-1 is lead bending L1 type and the PS2561AL2-1 is lead bending L2 type (Gull-wing).




Datasheet PDF Download :
2561 pdf

Others datasheet of same file : 2561,PS2561A-1,PS2561A-1-V,PS2561A-1-V-A,PS2561A-1Y-A
