Part Number : 2N3716

Function : 80V, 10A, NPN Transistor

Package : TO-3 Type

Maker : Motorola , Freescale

Pinouts :

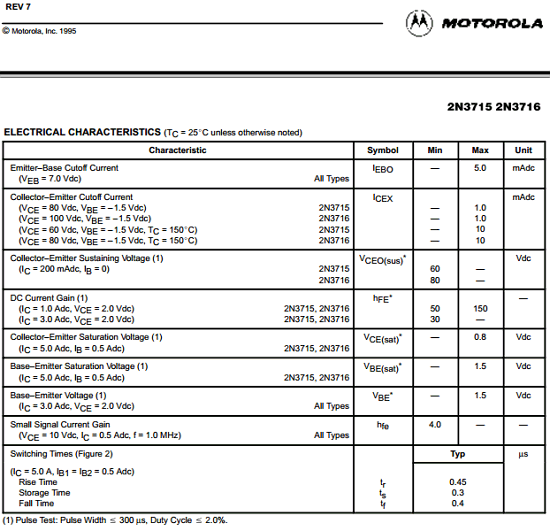

2N3716 datasheet

Description :

Silicon NPN power transistor


Features :

• Total Switching Time at 3 A typically 1.15 µs

• Gain Ranges Specified at 1 A and 3 A

• Low VCE(sat): typically 0.5 V at IC= 5 A and IB= 0.5 A

• Excellent Safe Operating Areas

• Complement to 2N3791–92




Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 80 V

2. Collector to Emitter Voltage : Vceo = 100 V

3. Emitter to Base Voltage : Vebo = 7 V

4. Collector Current : Ic = 10 A

5. Total Dissipation : Pc = 150 W

6. Junction Temperature : Tj = 200°C

7. Storage Temperatue : Tsg = -65 ~ +200°C


Applications :

1. Medium–speed switching

2. Amplifier

Datasheet PDF Download :
2N3716 pdf

Others datasheet of same file : 2N3715, N3716
