Part Number : 2N3771

Function : High Power NPN Silicon Power Transistor

Package : TO-3, TO-204AA Type

Maker : ON Semiconductor

Pinouts :
2N3771 datasheet

Description :

These devices are designed for linear amplifiers, series pass regulators, and inductive switching applications.

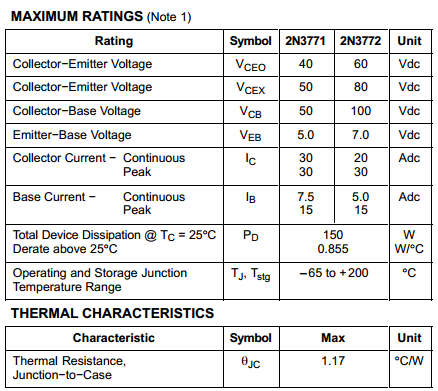

 Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 40 V

2. Collector to Emitter Voltage : Vceo = 50 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 30 A

5. Total Dissipation : Pc = 150 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Datasheet PDF Download :
2N3771 pdf

Others datasheet of same file :

N3771, 2N3771G, 2N3772, 2N3772G
