Part Number : 2SA940

Function : 1.5Ampere, PNP silicon power transistor / 150Volts, 25Watts

Package : TO-220 Type

Maker : Mospec Semiconductor

Pinouts :
2SA940 datasheet

Description :

The 2SA940 transistor is designed for use in general purpose power amplifier, vertical output application.

Features :

1. Collector-Emitter Volate : Vceo = 150V(Min)

2. DC Current Gain : hFE = 40-140@ Ic = 500mA

3.  Complemenetrary NPN 2SC2073

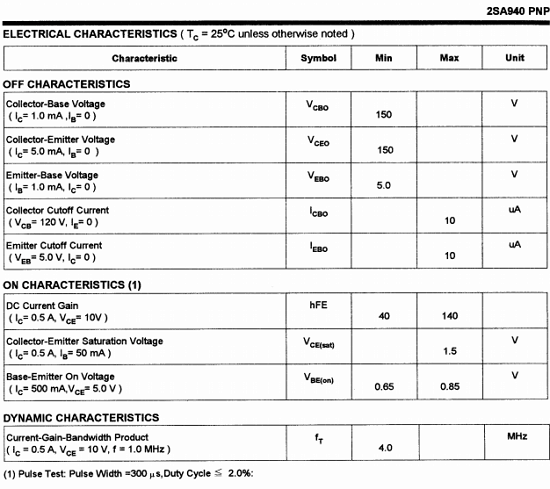

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 150 V

2. Collector to Emitter Voltage : Vceo = 150 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 1.5 A

5. Total Dissipation : Pc = 25 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C




Datasheet PDF Download :
2SA940 pdf

Others datasheet of same file : A940
