Part Number : 2SC1615

Function : 210V, 30mA, NPN transistor

Maker : ROHM Semiconductor

Pinouts :
2SC1615 datasheet

Description :

NPN Silicon Transistor



Features :

1. High breakdown voltage : Vcer = 210V

2. This triple-diffused planar transistor assures high reliability.

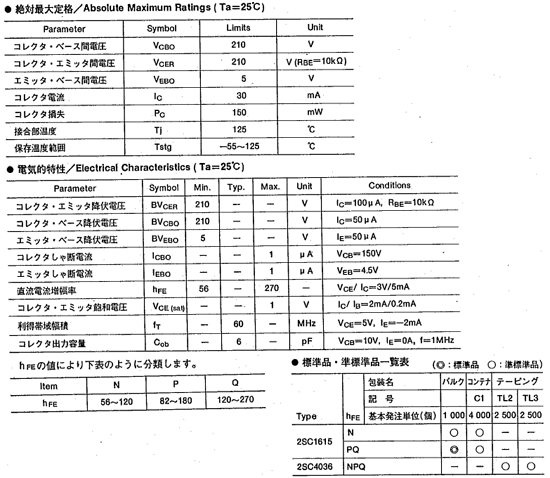

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 210 V

2. Collector to Emitter Voltage : Vceo = 210 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 30 mA

5. Total Dissipation : Pc = 150 mW

6. Junction Temperature : Tj = 125°C



7. Storage Temperatue : Tsg = -55 ~ +125°C


 Applications :

: High gain amplifier


Datasheet PDF Download :
2SC1615 pdf

Others datasheet of same file : 2SC4036, C1615, C4036
