Part Number : 2SC2091
Function : 40V, 1A, NPN SILICON TRANSISTOR
Package : TO-126 Type
Maker : Hitachi, NEC
Description :
Silicon NPN Epitaxial Transistor
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 75 V
2. Collector to Emitter Voltage : Vceo = 40 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 1 A
5. Total Dissipation : Pc = 0.75 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Pinouts :
High Frequency Power Amplifier

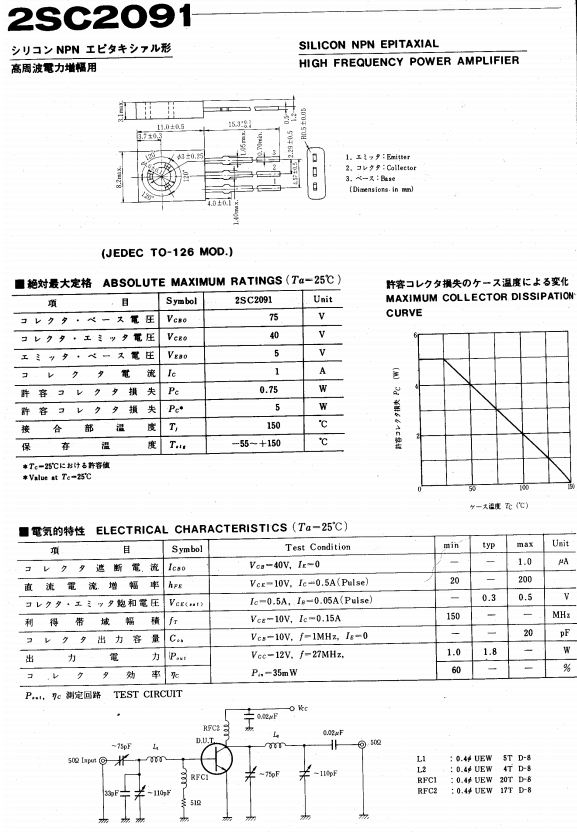

Datasheet PDF Download :
Others datasheet of same file : C2091
