Part Number : 2SC4242

Function : 7A, NPN Transistor, 400Volts 40Watts

Package : TO-220 Type

Maker : Mospec Semiconductor

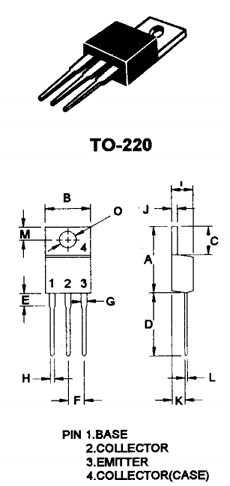

Pinouts :
2SC4242 datasheet

Description :

NPN Silicon Power Transistor, Switchmode Series NPN Power Transistor, 2SC4242 designed for use in high-voltage, high-speed, power switching in inductive circuit.

 Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 450 V

2. Collector to Emitter Voltage : Vceo = 400 V

3. Emitter to Base Voltage : Vebo = 8 V

4. Collector Current : Ic = 7 A

5. Total Dissipation : Pc = 40 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Applications :

1. Switching regulator

2. Inverter

3. DC-DC converter

Datasheet PDF Download :
2SC4242 pdf

Others datasheet of same file : C4242
