Part Number : 2SD822

Function : Silicon NPN Power Transistor

Package : TO-3P Type

Maker : ISC ( Inchange_Semiconductor )

Pinouts :
2SD822 datasheet

Description :

1. High Breakdown Voltage- : VCBO= 1500V (Min)

2. High Switching Speed

3. Low Collector Saturation Voltage-
: V CE(sat)= 5.0V(Max.)@ IC= 6A



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1500 V

2. Collector to Emitter Voltage : Vceo = 600 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 7 A

5. Total Dissipation : Pc = 50 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C




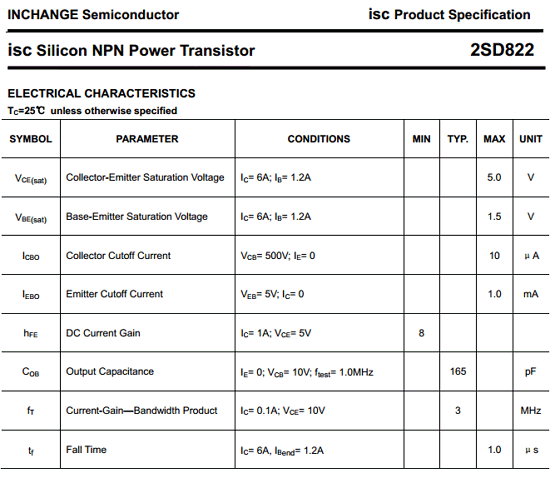

Datasheet PDF Download :
2SD822 pdf

Others datasheet of same file : D822
