Part Number : D822

Function : NPN transistor for audio amplifier, voltage regulator and DC-DC converter

Package : TO-126 Type

Maker : NEC , Renesas Technology

Pinouts :
D822 datasheet

Description :

The D882 is NPN silicon transistor suited for the output stage of 3 watts audio amplifier, voltage regulator, DC-DC converter and relay driver.

Features :

1. Low saturation voltage

2. Excellent hFE linearity and high hFE



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 40 V

2. Collector to Emitter Voltage : Vceo = 30 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 3 A

5. Total Dissipation : Pc = 10 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C



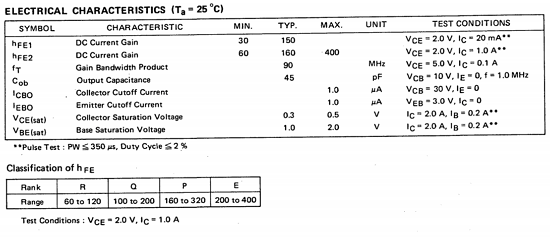

Others datasheet of same file : 2SD822

Datasheet PDF Download :
D822 pdf
