Part Number : FAN6754

Function : Highly Integrated Green-Mode PWM Controller

Package : SOP 8 Pin type


Maker : Fairchild Semiconductor


Image :
FAN6754 datasheet

Description :

Obsolete as of 25-Nov-2012

The highly integrated FAN6754 PWM controller provides several features to enhance the performance of flyback converters. To minimize standby power consumption, a proprietary green-mode function provides off-time modulation to continuously decrease the switching frequency under light-load conditions.

Under zero-load and very light-load conditions, FAN6754 saves PWM pulses by entering deep burst mode. This burst mode function enables the power supply to meet international power conservation requirements.

FAN6754 integrates a frequency-hopping function internally to reduce EMI emission of a power supply with minimum line filters.Built-in synchronized slope compensation is accomplished by proprietary HV monitor to adjust VLimit for constant output power limit over universal AC input range. Also, the gate output is clamped at 13V to protect the external MOSFET from over-voltage damage.

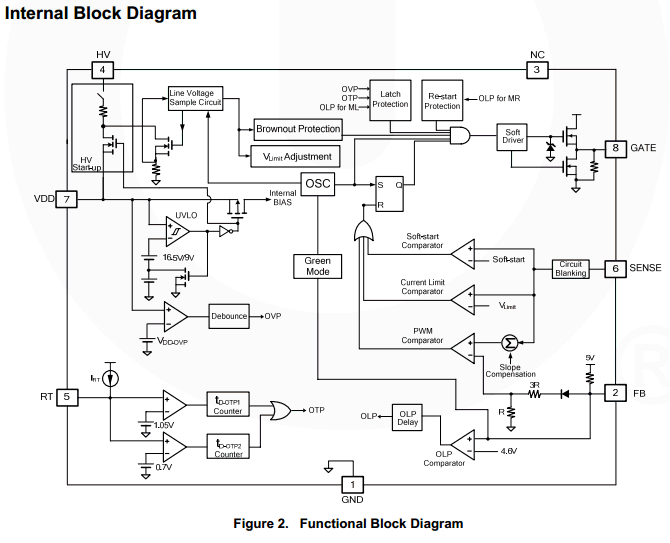

Block Diagram


Datasheet PDF Download :
FAN6754 pdf

Others datasheet of same file :

6754ML, 6754MR, FAN6754MLMY, FAN6754MRMY
