Part Number : FGPF4536
Function : 360 V PDP Trench IGBT / TO-220F Package
Maker : Fairchild Semiconductor

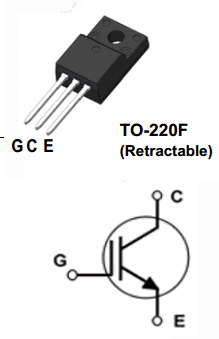

Pinouts :
FGPF4536 datasheet

Description :

Using novel trench IGBT technology, Fairchild’s new series of trench IGBTs offer the optimum performance for consumer appliances, PDP TV and lighting applications where low conduction and switching losses are essential.



• High Current Capability
• Low Saturation Voltage: V CE (sat)=1.59 V @ IC= 50 A
• High Input Impedance
• Fast Switching
• RoHS Compliant


Datasheet PDF Download :
FGPF4536 pdf

Others datasheet of same file : FGPF4536
