Part Number : GUBTCR42M

Function : Bluetooth Module GUBTCR42M

Maker : Unspecified

 Image :

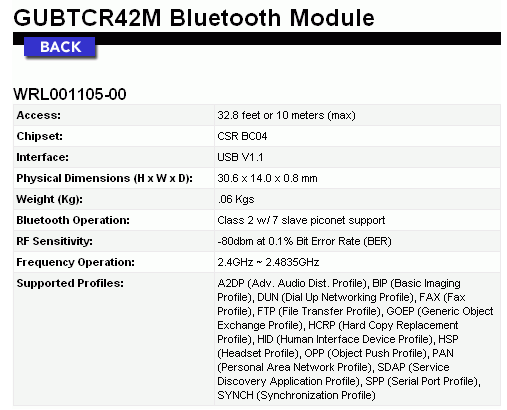

GUBTCR42M datasheet

Description :

The GUBTCR42Mis designed to provide Bluetooth function on a small form factor.

The Bluetooth function is based on CSR BC04-ROM chipset Bluetooth System, which implements the full speed class 2 Bluetooth operations with full 7 slave piconet support. The interface of GUBTCR42M to host system is USB and full compliant with USB ver.2.0



- CSR BC04-ROM Chipset Bluetooth System
- Class 2 Bluetooth operation with full 7 slave piconet support





- Complient with USB ver 2.0 Interface
- Single onboard Antenna connector support
- Chip Antenna on board (Optional)
-.Bluetooth wireless access up to a radius of 32.8 feet (10 Meters)


GUBTCR42M Datasheet


GUBTCR42M pdf

Others datasheet of same file : GUBTCR42M
