Part Number : IT66121FN

Function : Low Power Transmitter with HDMI1.4 3D

Package : QFP 64 Pin Type

Maker : ITE Tech. INC.

Image :
IT66121FN datasheet

Description :

The IT66121, IT66121FN is a high-performance and low-power single channel HDMI transmitter, fully compliant with HDMI 1.3a, HDCP 1.2 and backward compatible toDVI 1.0 specifications. IT66121 also provide the HDMI1.4 3D feature, which enables direct 3D displays through an HDMI link. The IT66121 serve to provide the most cost-effective HDMI solution for DTV-ready consumer electronics such as set-top boxes, DVD players and A/V receivers, as well as DTV-enriched PC products such as notebooks an desktops, without compromising the performance. Itsbackward compatibility to DVI standard allows connectivity to myriad video displays such as LCD and CRT monitors, in addition to the ever-so-flourishing Flat Panel TVs.

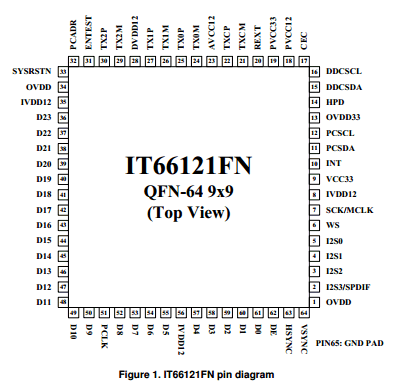

Pinouts :


Features

1. Single channel HDMI transmitter

2. Compliant with HDMI 1.3a, HDCP 1.2 and DVI 1.0 specifications

3. Supporting pixel rates from 25MHz to 165MHz

Block Diagram




Datasheet PDF Download :
IT66121FN pdf

Others datasheet of same file : IT66121, IT66121-FN
