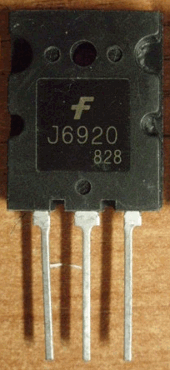

Part Number : J6920

Function : 1700V, 20A, NPN Transistor

Package : TO-264 Type

Maker : Fairchild Semiconductor

Pinouts :
J6920 datasheet

Description :

NPN Triple Diffused Planar Silicon Transistor




• High Collector-Base Breakdown Voltage : BVCBO= 1700V

• Low Saturation Voltage : VCE(sat) = 3V (Max.)

• For Color Monitor

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1700 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 20 A

5. Total Dissipation : Pc = 200 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Applications :

High Voltage Color Display Horizontal Deflection Output


Datasheet PDF Download :
J6920 pdf

Others datasheet of same file : FJL6920
