Part Number : LA1186N

Function : FM Front End for Radio-Cassette Recorders,Music Centers

Package : SIP 9 Pin Type

Maker : SANYO , Panasonic

Pinouts :
LA1186N datasheet

Description :

• Contains RF amplifier, MIX, OSC, AFC diode.
• Operating voltage : 1.8 to 8.0V.
• Improvement in cross modulation characteristic due to the use of double-balanced MIX.
• Improvement in strong input characteristic.
• Minimum number of external parts required.
• Less spurious radiation from local OSC.
• TV (1 to 12 channel) receive capability.



Test Circuits :

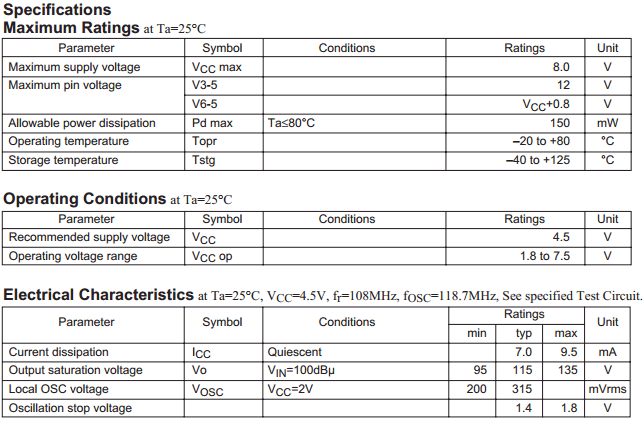

Features and


Datasheet PDF Download :
LA1186N pdf

Others datasheet of same file : LA1186
