Part Number : LM358DT

Function : General-purpose Operational Amplifier / Comparator

Package : SO 8 Pin Type

Maker : ROHM Semiconductor

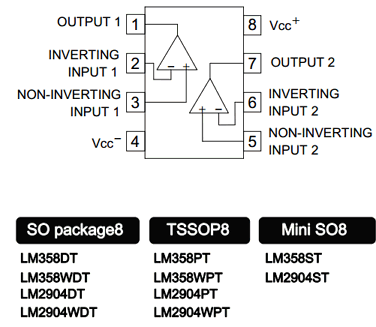

Pinouts :
LM358DT datasheet

Description :

The Universal Standard family LM358 / LM324, LM2904 / LM2902 monolithic ICs integrate two independent op-amps and phase compensation capacitors on a single chip
and feature high-gain, low power consumption, and an operating voltage range of 3[V] to 32[V]  (single power supply.)

Features

1. Operating temperature range

(1) Commercial Grade : LM358/324 family : 0[℃] to + 70[℃]

(2) Extended Industrial Grade LM2904/2902 family : -40[℃] to +125[℃]

2. Wide operating supply voltage

(1) +3[V] to +32[V] (single supply)

(2) ±1.5[V] to ±16[V] (dual supply)

3. Low supply current

4. Common-mode input voltage range including ground

5. Differential input voltage range equal to maximum rated supply voltage

6. High large signal voltage gain 7) Wide output voltage range



Datasheet PDF Download :
LM358DT pdf

Others datasheet of same file : LM2902, LM2902DT, LM2902PT, LM2902WDT, LM2904DT
