Posted
Filed under Sanken Electric

Part Number : M1661S, TM1661S

Function : 16A Triac

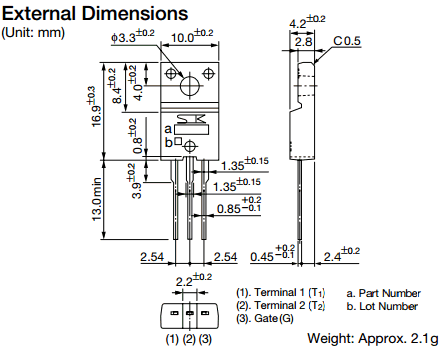

Package : TO-220F

Maker : Sanken Electric co.,ltd.

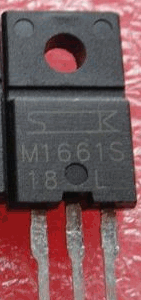

Image :
M1661S datasheet

Description :

1. Repetitive peak off-state voltage: VDRM=400, 600V

2. RMS on-state current: IT(RMS)=16A

3. Gate trigger current: IGT=30mA max (MODE , , )

4. Isolation voltage: VISO=1500V(50Hz Sine wave, RMS)

5. UL approved type available


M1661S Datasheet PDF


M1661S pdf

Others datasheet of same file : M1641S, TM1641S-L, TM1661S, TM1661S-L
