Part Number : MC7805BT

Function : (MC7800 Series) 1A Positive Voltage Regulator

Maker : ON Semiconductor

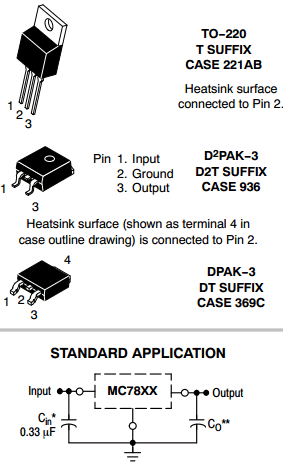

Pinouts :
MC7805BT datasheet

Description :

These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a widevariety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable
voltages and currents.

Features
 Output Current in Excess of 1.0 A
 No External Components Required
 Internal Thermal Overload Protection
 Internal Short Circuit Current Limiting
 Output Transistor Safe−Area Compensation
 Output Voltage Offered in 1.5%, 2% and 4% Tolerance
 Available in Surface Mount D2PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change  Requirements; AEC−Q100 Qualified and PPAP Capable
These are Pb−Free Devices




Datasheet PDF Download :
MC7805BT pdf

Others datasheet of same file : MC7800,MC7800A,MC7800AE,MC7805ABD2TG,MC7805ABD2TR4G
