Part Number : SF1603G

Function : 16.0 AMPS. Glass Passivated Super Fast Rectifiers

Maker : TSC Corporation

Pinouts :
SF1603G datasheet

Description :

Features

1. Low forward voltage drop
2. High current capability
3. High reliability
4. High surge current capability

Mechanical Data

1. Cases : Molded plastic
2. Epoxy : UL 94V-O rate flame retardant
3. Terminals : Leads solderable per MIL-STD-202, Method 208 guaranteed
4. Polarity : As marked
5. High temperature soldering guaranteed: 260oC/10 seconds .16”,(4.06mm) from case.
6. Weight: 2.24 grams

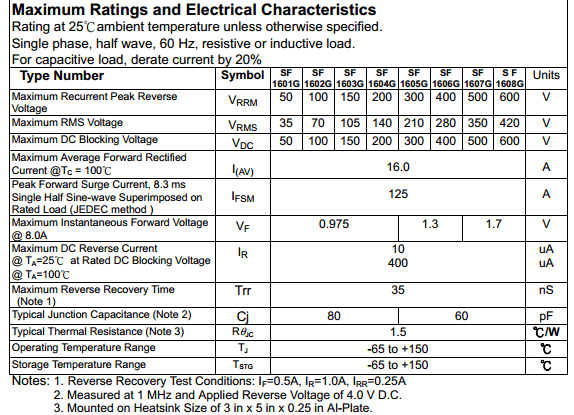

SF1603G Datasheet PDF


SF1603G pdf

Others datasheet of same file : SF1601G, SF1602G, SF1603G, SF1604G, SF1605G
