Part Number : TMC2011AN2C1

Function : Variable-Length Shift Register

Package : DIP 24 Pin Type

Maker : Fairchild Semiconductor

Pinouts :
TMC2011AN2C1 datasheet

Description :

The TMC2011AN2C1, TMC2011A and TMC2111A are high-speed, byte-wide shift registers with programmable delay lengths. The TMC2011A can be programmed to any length between 3 and 18 stages. It offers a special split-word mode which allows for mixed delay lengths. The TMC2011A, constructed in low-power CMOS, is pin and function compatible with the bipolar TDC1011. The TMC2111A is a byte-wide shift register that can be programmed to lengths of 1 to 16 stages.

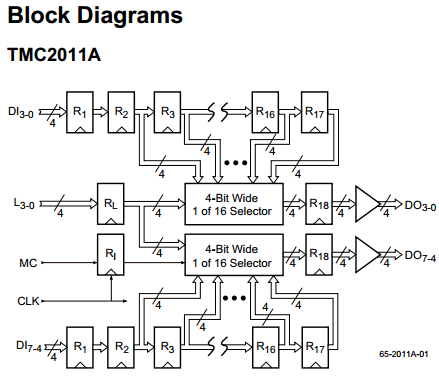

Block diagram

Features

• Low power CMOS

• Inputs and outputs are TTL compatible

• DC–40MHz clock rate

• Selectable delay lengths (TMC2011A: 3 to 18 stages, TMC2111A: 1 to 16 stages)

• Special 4-bit wide mixed-delay mode (TMC2011A)



Applications

• Video filtering

• High speed data registers

• Local storage registers

• Digital delay lines

• Television special effects

• Pipeline register


Datasheet PDF Download :
TMC2011AN2C1 pdf

Others datasheet of same file :

2011AB2C, 2011AB2C1, 2011AN2C, 2011AN2C1, 2011AR3C
