Part Number : UP7706, UP7706U8, uP7706

Function : 3A,  Ultra Low Dropout Linear Regulator

Package : SOP 8 Pin Type

Maker : uPI Semiconductor ( http://www.upi-semi.com )

Image :
UP7706 datasheet

Description :

The uP7706 is a 3A ultra low dropout linear regulator specifically designed for motherboard and notebook applications. This device works with dual supplies, a control input for the control circuitry and a power input as low as 1.2V for providing current to output. The uP7706 delivers high-current and ultra-low-drop output voltage as low as 0.8V for applications where V OUT is very close to V IN.

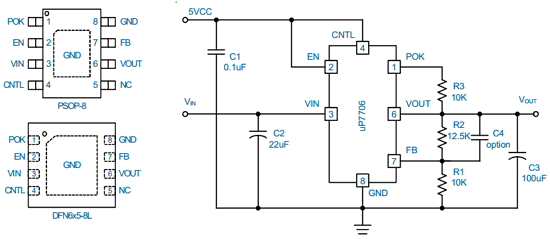

Pinout :



Features :

1. VOUT Pull Low Resistance when Disabled

2. Low Reverse Leakage (Output to Input )

3. VOUT Power OK Signal

4.  Fast Transient Response

5. Low External Component Count

6. Low Cost and Easy to Use

7. Enable Pin

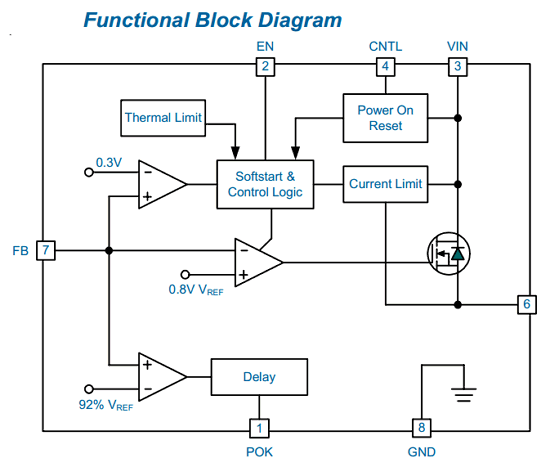

Block Diagram :

Applications :

1. Desktop PCs, Notebooks, and Workstations

2. Graphic Cards

3. Low Voltage Logic Supplies

4. Microprocessor and Chipset Supplies

5. Split Plane Microprocessor Supplies

Datasheet PDF Download :
UP7706 pdf

Others datasheet of same file :

UP-7706, UP7706ADC8, UP7706U8
