Part Number : KP11N60

Function : N CHANNEL MOS FIELD EFFECT TRANSISTOR

Package : TO-220IS Type

Maker : KEC

Pinouts :
KP11N60 datasheet

Description :

This Super Junction MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characteristics. It is mainly suitable for active power factor correction and switching mode power supplies.



Features

1. VDSS=600V, ID=11A

2. Drain-Source ON Resistance : RDS(ON)(Max)=0.38Ω@VGS=10V

4. Qg(typ.)= 20nC

 Block Diagram

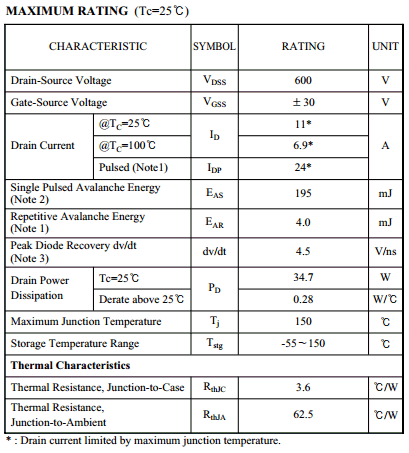

Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage : VDSS =  600 V
2. Gate to source voltage : VGSS = ± 30 V
3. Drain current : ID =  11 A
4. Channel temperature : Tch =  150 °C
5. Storage temperature : Tstg = -55 to +150 °C

Datasheet PDF Download :
KP11N60 pdf

Others datasheet of same file : 11N60, KP11N60F
