Part Number : MAC15-10FP

Function : 800V, 15A, Triacs / Silicon Bidirectional Thyristor

Package : Case 221C-02 Type

Maker : Motorola , Freescale

Image :

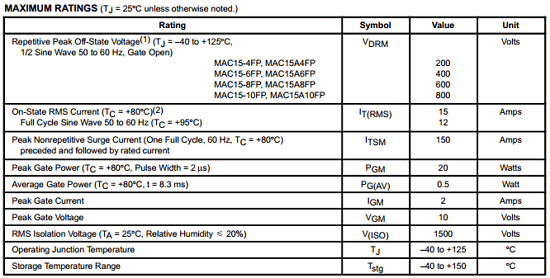

MAC15-10FP datasheet

Description :

MAC15FP Series, MAC15AFP Series(MAC15-10FP) designed primarily for full-wave ac control applications, such as solid-state relays, motorcontrols,heating controls and power supplies; or wherever full-wave silicon gate controlled solid-state devices are needed. Triac type thyristors switch from a blockingto a conducting state for eitherpolarity of applied anode voltage with positive or negative gate triggering.



Features

 Blocking Voltage to 800 Volts

• All Diffused and Glass Passivated Junctions for Greater Parameter Uniformity and Stability

Datasheet PDF Download :
MAC15-10FP pdf

Others datasheet of same file :

MAC15-10, MAC1510FP, MAC15-4, MAC15-4FP, MAC15-6
